1698161001 | Weidmüller
Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 4 A, 1.5 kV, dark beige, 1698161001
Unit Price (€ / pc.)
7.0567 € *
Standard delivery time from the manufacturer is: 6 Weeks

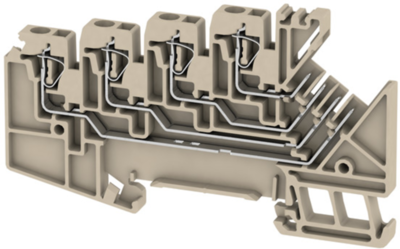

Double-tier terminal, 1698161001, Weidmüller
Double-tier terminal block, spring-cage connection, 1.5 mm², 63 V, 4 A, number of levels: 4, dark beige
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 89.5 mm | |
| Degree of soiling | 3 | |
| Rated Voltage | 63 V | |
| Rated current | 4 A | |
| Cable cross-section | 0.5-2.5 mm² | |
| Number of terminals | 8 | |
| Length | 52 mm | |
| Width | 5.1 mm | |
| Colour | dark beige | |
| Rated surge voltage | 1.5 kV | |
| AWG cross-section | AWG 26 to 14 | |
| Connection | spring balancer connection | |
| Version | multi level terminal block |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
