1698110000 | Weidmüller

Protective conductor terminal, spring balancer connection, 0.5-4.0 mm², 4 pole, 300 A, 8 kV, white, 1698110000

Order No.: 51P9194
EAN: 4008190886356
MPN:
1698110000
ZPE 2.5/4AN WS
Series: Z-Reihe
1698110000 Weidmüller Series Terminals

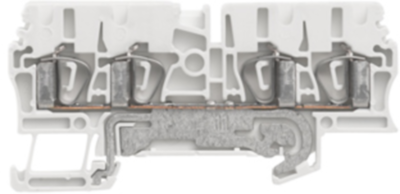

Image may differ
Unit Price (€ / pc.)
4.4387 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.4387 €

Protective conductor terminal block, 1698110000, Weidmüller

Protective conductor terminal block, tension clamp connection, 2.5 mm², 800 V, number of connections: 4, number of levels: 1, white

Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Version protective conductor terminal
Number of terminals 4
Pin number 4 pole
Cable cross-section 0.5-4.0 mm²
AWG cross-section AWG 30 to 12
Rated surge voltage 8 kV
Rated current 300 A
Rated Voltage 800 V
Degree of soiling 3
Length 79.5 mm
Width 5.1 mm
Height 38.5 mm
Connection spring balancer connection
Colour white
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
