1694140000 | Weidmüller

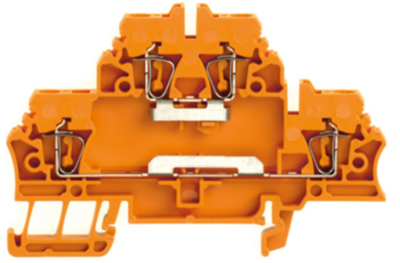

Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 20 A, 6 kV, orange, 1694140000
Unit Price (€ / pc.)
3.6533 € *
Available: 20 pcs.
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
3.65 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6533 €
10 pcs.
3.3558 €
50 pcs.
3.0702 €
100 pcs.
2.7608 €
*incl. VAT plus shipping costs
Subject to prior sale
Double-tier terminal, 1694140000, Weidmüller
Double-tier terminal block, tension clamp connection, 2.5 mm², 500 V, 20 A, number of levels: 2, orange
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 12 | |
| Length | 53 mm | |
| Rated current | 20 A | |
| Number of terminals | 4 | |
| Height | 79.5 mm | |
| Colour | orange | |
| Rated surge voltage | 6 kV | |
| Width | 5.1 mm | |
| Degree of soiling | 3 | |
| Connection | spring balancer connection | |
| Version | multi level terminal block | |
| Rated Voltage | 500 V | |
| Cable cross-section | 0.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
