1552670000 | Weidmüller
Protective conductor terminal, push-in connection, 0.5-1.5 mm², 3 pole, 6 kV, yellow/green, 1552670000
Unit Price (€ / pc.)
4.4863 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.49 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4863 €
10 pcs.
4.1174 €
50 pcs.
3.7485 €
100 pcs.
3.3677 €
*incl. VAT plus shipping costs
Subject to prior sale

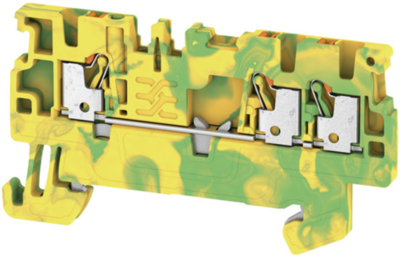

Protective conductor terminal block, 1552670000, Weidmüller
Protective conductor terminal block, PUSH IN, 1.5 mm², 500 V, number of connections: 3, number of levels: 1, green / yellow, orange
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 33.5 mm | |
| Connection | push-in connection | |
| Pin number | 3 pole | |
| Width | 3.5 mm | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.5-1.5 mm² | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 26 to 14 | |
| Rated Voltage | 500 V | |
| Length | 61.5 mm | |
| Number of terminals | 3 | |
| Colour | yellow/green | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
