1552660000 | Weidmüller

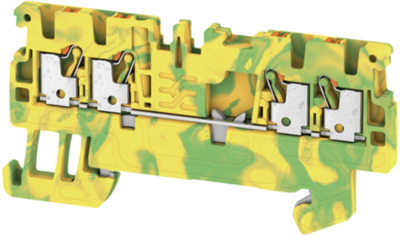

Protective conductor terminal, push-in connection, 0.5-1.5 mm², 4 pole, 6 kV, yellow/green, 1552660000
Unit Price (€ / pc.)
4.7957 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.80 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7957 €
10 pcs.
4.4030 €
50 pcs.
4.0103 €
100 pcs.
3.6057 €
*incl. VAT plus shipping costs
Subject to prior sale
Protective conductor terminal block, 1552660000, Weidmüller
Protective conductor terminal block, PUSH IN, 1.5 mm², 500 V, number of connections: 4, number of levels: 1, green / yellow, orange
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 4 | |
| Width | 3.5 mm | |
| Rated surge voltage | 6 kV | |
| Cable cross-section | 0.5-1.5 mm² | |
| Length | 67.5 mm | |
| Height | 33.5 mm | |
| Version | protective conductor terminal | |
| Pin number | 4 pole | |
| AWG cross-section | AWG 26 to 14 | |
| Degree of soiling | 3 | |
| Colour | yellow/green | |
| Rated Voltage | 500 V |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
