1530040000 | Weidmüller
Supply terminal, spring balancer connection, 0.5-10 mm², 41 A, 8 kV, blue, 1530040000
Unit Price (€ / pc.)
3.1297 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
10 pcs.
2.9036 €
50 pcs.
2.6180 €
*incl. VAT plus shipping costs
Subject to prior sale

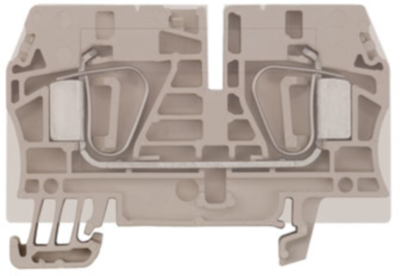

Feed-in terminal, 1530040000, Weidmüller
Feed-in terminal, tension clamp connection, 6 mm², 500 V, 41 A, TS 35, blue
Power terminal for potential distribution with uniform cross-connection channels.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Number of terminals | 2 | |
| Height | 65 mm | |
| Colour | blue | |
| Degree of soiling | 3 | |
| Rated current | 41 A | |
| Cable cross-section | 0.5-10 mm² | |
| Version | supply terminal | |
| Connection | spring balancer connection | |
| AWG cross-section | AWG 22 to 8 | |
| Width | 10 mm | |
| Rated surge voltage | 8 kV | |
| Length | 45 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
