1480270000 | Weidmüller

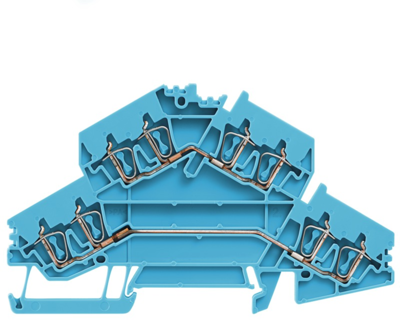

Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 22 A, 8 kV, blue, 1480270000
Unit Price (€ / pc.)
4.3673 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3673 €
10 pcs.
4.0222 €
50 pcs.
3.6533 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale
Double-tier terminal, 1480270000, Weidmüller
Double-tier terminal block, tension clamp connection, 2.5 mm², 800 V, 22 A, number of levels: 2, blue
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 800 V | |
| Connection | spring balancer connection | |
| AWG cross-section | AWG 30 to 12 | |
| Number of terminals | 8 | |
| Length | 62 mm | |
| Height | 104 mm | |
| Rated surge voltage | 8 kV | |
| Width | 5.1 mm | |
| Colour | blue | |
| Version | multi level terminal block | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated current | 22 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
