1415470000 | Weidmüller
Protective conductor terminal, screw connection, 1.5-16 mm², 4 pole, 57 A, 8 kV, yellow/green, 1415470000
Unit Price (€ / pc.)
9.3415 € *
Standard delivery time from the manufacturer is: 12 Weeks

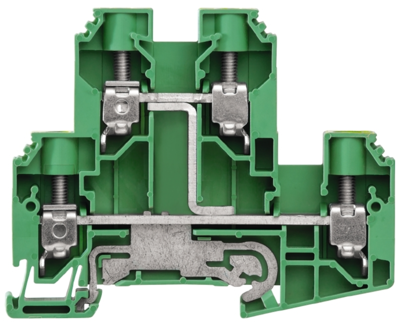

Protective conductor terminal block, 1415470000, Weidmüller
Protective conductor terminal block, screw connection, 10 mm², 800 V, 57 A, number of connections: 4, number of levels: 2, green / yellow.
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow/green | |
| Width | 9.9 mm | |
| Connection | screw connection | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 16 to 6 | |
| Pin number | 4 pole | |
| Rated Voltage | 800 V | |
| Version | protective conductor terminal | |
| Cable cross-section | 1.5-16 mm² | |
| Height | 69 mm | |
| Length | 85 mm | |
| Rated current | 57 A | |
| Rated surge voltage | 8 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
