1393400000 | Weidmüller

Through terminal block, screw connection, 2.5-35 mm², 2 pole, 125 A, 8 kV, dark beige, 1393400000

Order No.: 51P2840
EAN: 4050118299373
MPN:
1393400000
WDU 35 IR
Series: W-Reihe
1393400000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
5.3074 € *
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
5.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.3074 €

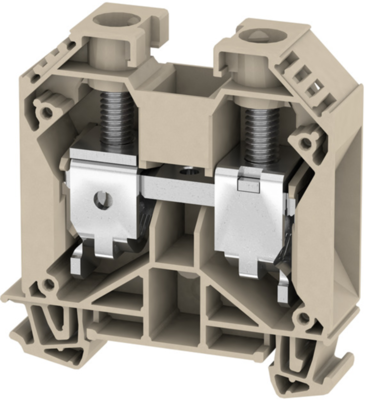

Feed-through terminal, 1393400000, Weidmüller

Feed-through modular terminal block, screw connection, 35 mm², 1000 V, 125 A, number of connections: 2, TS 35, dark beige

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Version through terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 2.5-35 mm²
AWG cross-section AWG 12 to 2
Rated surge voltage 8 kV
Rated current 125 A
Rated Voltage 1000 V
Degree of soiling 3
Length 62.5 mm
Width 16 mm
Height 60 mm
Connection screw connection
Colour dark beige
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
