1319050000 | Weidmüller

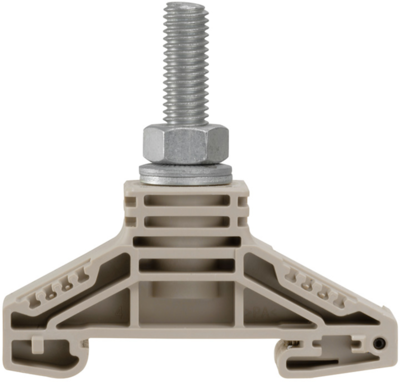

Bolt terminal, bolt connection, 35 mm², 1 pole, 125 A, 8 kV, dark beige, 1319050000
Order No.: 51P1239
EAN: 4050118317237
MPN:
1319050000
WF 6/32
Unit Price (€ / pc.)
9.7342 € *
Standard delivery time from the manufacturer is: 2 Weeks
Bolt clamp, 1319050000, Weidmüller
Bolt clamp, bolt connection, 35 mm², 1000 V, 125 A, number of connections: 1, M 6, TS 32, dark beige
Clamp with threaded bolt for the transmission of energy. The conductors are connected to the threaded bolt with crimped cable lugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 1000 V | |
| Connection | bolt connection | |
| Number of terminals | 1 | |
| Length | 61 mm | |
| Height | 67 mm | |
| Rated surge voltage | 8 kV | |
| Width | 16 mm | |
| Pin number | 1 pole | |
| Colour | dark beige | |
| Version | Bolt terminal | |
| Cable cross-section | 35 mm² | |
| Rated current | 125 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
