1303670000 | Weidmüller

Multi level terminal block, screw connection, 0.5-2.5 mm², 20 mA, 0.8 kV, dark beige, 1303670000

Order No.: 51P0711
EAN: 4050118102628
MPN:
1303670000
WDK 2.5 LD/GN 1D 2R 230
Series: W-Reihe
1303670000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
12.1023 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
12.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.1023 €

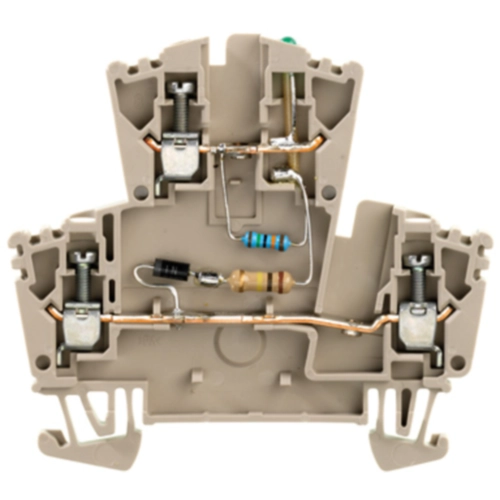

Double-tier terminal, 1303670000, Weidmüller

Double-tier terminal block, screw connection, 2.5 mm², 230 V, number of levels: 2, dark beige

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Degree of soiling 3
Connection screw connection
Length 62.5 mm
Rated current 20 mA
Number of terminals 3
Colour dark beige
Rated surge voltage 0.8 kV
Width 5.1 mm
Version multi level terminal block
Height 69 mm
Cable cross-section 0.5-2.5 mm²
Rated Voltage 24 V
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
