1301640000 | Weidmüller
Potential distribution terminal, screw connection, 0.5-1.5 mm², 32 pole, 10 A, 4 kV, orange, 1301640000
Unit Price (€ / pc.)
19.9206 € *
Standard delivery time from the manufacturer is: 3 Weeks

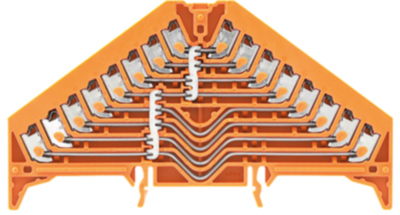

Potential distributor terminal, 1301640000, Weidmüller
Potential distribution terminal, number of connections: 32, TS 35 x 7.5, orange
Terminal for potential distribution with a high contact density.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | potential distribution terminal | |
| Number of terminals | 4 | |
| Pin number | 32 pole | |
| Cable cross-section | 0.5-1.5 mm² | |
| AWG cross-section | AWG 24 to 16 | |
| Rated surge voltage | 4 kV | |
| Rated current | 10 A | |
| Rated Voltage | 300 V | |
| Degree of soiling | 3 | |
| Length | 65.5 mm | |
| Width | 9.2 mm | |
| Height | 120 mm | |
| Connection | screw connection | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
