1288590000 | Weidmüller

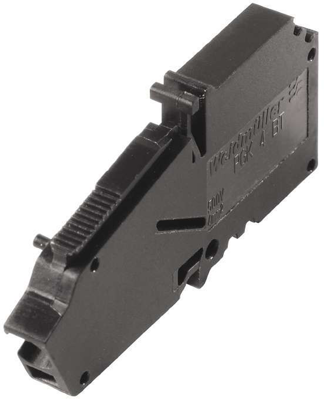

Feed through terminal, push-in connection, 0.5-4.0 mm², 1 pole, 32 A, 6 kV, black, 1288590000
Unit Price (€ / pc.)
3.8437 € *
Available: 88 pcs.
Total Price:
7.69 € *
Price list
Quantity
Price per unit*
2 pcs.
3.8437 €
10 pcs.
3.3915 €
100 pcs.
2.9631 €
250 pcs.
2.8441 €
1000 pcs.
2.6656 €
*incl. VAT plus shipping costs
Subject to prior sale

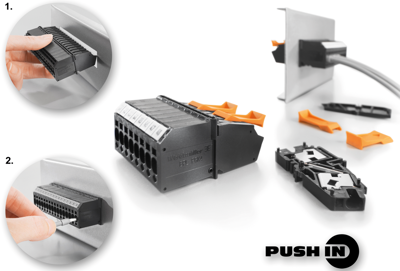

PUSH IN connectivity inside and outside, stackable.
Rated cross-section: 4.0 mm²
Rated voltage: 500 V
Rated current: 32 A
Rated surge voltage: 6.0 kV
Degree of soiling: 3
Material: Wemid
Color: black
Inflammability class: UL94 V-0.
Certifications: CSA, cULus, CPT.
Type: PGK 4 BT BK, middle terminal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.5-4.0 mm² | |
| AWG cross-section | AWG 24 to 10 | |
| Rated current | 32 A | |
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Colour | black | |
| Degree of soiling | 3 | |
| Version | feed through terminal | |
| Pin number | 1 pole | |
| Rated surge voltage | 6 kV | |
| Rated Voltage | 500 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
