1288470000 | Weidmüller

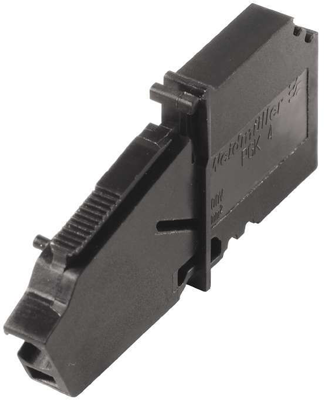

Feed through terminal, push-in connection, 0.5-4.0 mm², 1 pole, 32 A, 6 kV, black, 1288470000
Unit Price (€ / pc.)
2.4514 € *
Standard delivery time from the manufacturer is: 8 Weeks

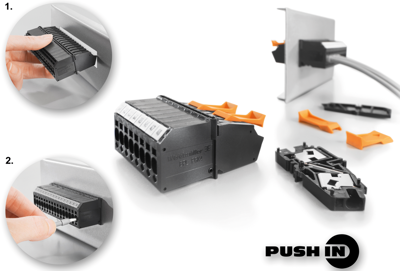

PUSH IN connectivity inside and outside, stackable.
Rated cross-section: 4.0 mm²
Rated voltage: 500 V
Rated current: 32 A
Rated surge voltage: 6.0 kV
Degree of soiling: 3
Material: Wemid
Color: black
Inflammability class: UL94 V-0.
Certifications: CSA, cULus, CPT.
Type: PGK 4 BK, start terminal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 10 | |
| Rated current | 32 A | |
| Number of terminals | 2 | |
| Colour | black | |
| Rated surge voltage | 6 kV | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Pin number | 1 pole | |
| Version | feed through terminal | |
| Rated Voltage | 500 V | |
| Cable cross-section | 0.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
