1284160000 | Weidmüller

Thermocouple terminal block, Screw connection, 0.5-2.5 mm², beige/yellow

Order No.: 51P0269
EAN: 4008190033569
MPN:
1284160000
DK 4Q/35/TC TYP K
Series: SAK-Reihe
1284160000 Weidmüller Series Terminals

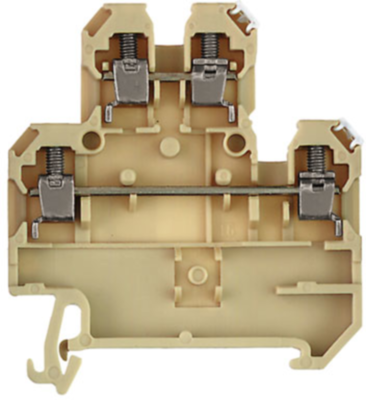

Image may differ
Unit Price (€ / pc.)
29.5596 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
29.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.5596 €

Thermocouple terminal block, screw connection, 4, beige/yellow

The Thermocouple terminal block is specially designed for the transmission of the smallest voltages in temperature measuring circuits. The special current rails ensure that no false signals can occur in the terminal in the event of temperature differences.

Technical specifications
Filter Property Value
Cable cross-section 0.5-4.0 mm²
Height 54 mm
Length 59.5 mm
Connection screw connection
Colour beige/yellow
Number of terminals 2
Version thermocouple terminal block
Width 6 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
