1255280000 | Weidmüller
Multi level terminal block, screw connection, 0.5-4.0 mm², 21 A, gray, 1255280000
Unit Price (€ / pc.)
4.0222 € *
Available: 60 pcs.
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.6890 €
50 pcs.
3.3558 €
100 pcs.
3.0226 €
*incl. VAT plus shipping costs
Subject to prior sale

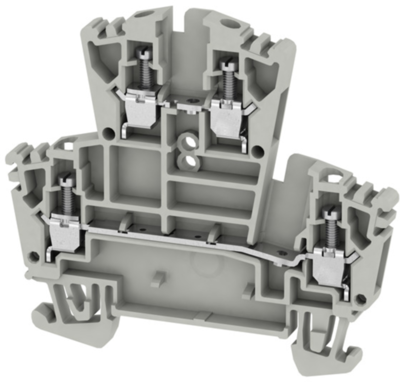

Double-tier terminal, 1255280000, Weidmüller
Double-tier terminal block, screw connection, 2.5 mm², 400 V, number of levels: 2, gray
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 400 V | |
| Number of terminals | 4 | |
| Height | 69.5 mm | |
| Colour | gray | |
| Degree of soiling | 3 | |
| Rated current | 21 A | |
| Cable cross-section | 0.5-4.0 mm² | |
| Version | multi level terminal block | |
| Connection | screw connection | |
| AWG cross-section | AWG 12 | |
| Width | 5.1 mm | |
| Length | 62.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
