1247430000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 24 A, 8 kV, dark beige, 1247430000

Order No.: 50P9565
EAN: 4050118038453
MPN:
1247430000
WDK 2.5/TR-DU-PE STB
Series: W-Reihe
1247430000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
8.1039 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
8.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.1039 €

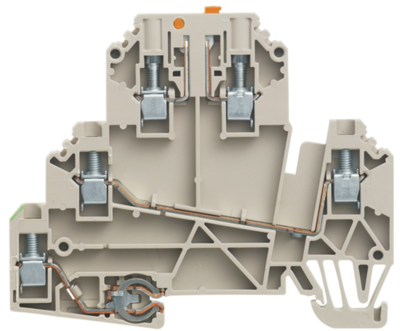

Test-disconnect terminal, 1247430000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 2.5 mm², 690 V, 24 A, swiveling, cross-disconnect: none, integrated test socket: yes, TS 35, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Colour dark beige
AWG cross-section AWG 26 to 12
Rated current 24 A
Width 5.1 mm
Height 72.5 mm
Length 66 mm
Cable cross-section 0.5-4.0 mm²
Number of terminals 2
Version disconnect/test-disconnect terminal block
Connection screw connection
Degree of soiling 3
Rated Voltage 690 V
Rated surge voltage 8 kV
Logistics
Country of origin RO
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
