1186780000 | Weidmüller

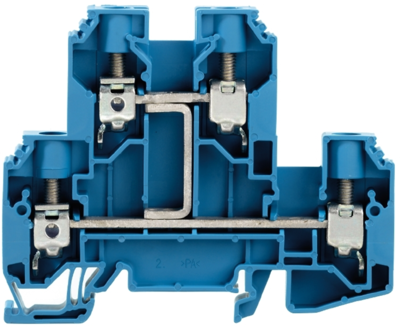

Multi level terminal block, screw connection, 1.5-16 mm², 57 A, 8 kV, blue, 1186780000

Order No.: 50P7874
EAN: 4050118024654
MPN:
1186780000
WDK 10 V BL
Series: W-Reihe
1186780000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
7.9968 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
8.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.9968 €

Double-tier terminal, 1186780000, Weidmüller

Double-tier terminal block, screw connection, 10 mm², 800 V, 57 A, number of levels: 2, blue

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Height 85 mm
Version multi level terminal block
Colour blue
Width 9.9 mm
Rated current 57 A
Degree of soiling 3
Rated Voltage 800 V
AWG cross-section AWG 16 to 6
Number of terminals 4
Connection screw connection
Rated surge voltage 8 kV
Cable cross-section 1.5-16 mm²
Length 69 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
