1143020000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 20 A, 8 kV, dark beige, 1143020000

Order No.: 50P6818
EAN: 4032248926138
MPN:
1143020000
WMF 2.5 DI
Series: W-Reihe
1143020000 Weidmüller Series Terminals

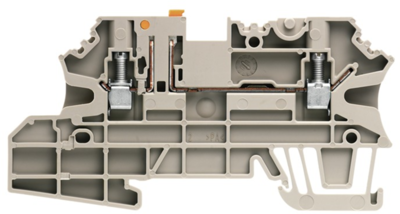

Image may differ
Unit Price (€ / pc.)
3.9151 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
3.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.9151 €

Test-disconnect terminal, 1143020000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 2.5 mm², 500 V, 20 A, swivel type, cross disconnection: none, integrated test socket: no, TS 35.

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Colour dark beige
AWG cross-section AWG 26 to 12
Rated current 20 A
Width 5.08 mm
Height 88 mm
Length 44.5 mm
Cable cross-section 0.5-4.0 mm²
Number of terminals 2
Version disconnect/test-disconnect terminal block
Connection screw connection
Degree of soiling 3
Rated Voltage 500 V
Rated surge voltage 8 kV
Logistics
Country of origin RO
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
