1131760000 | Weidmüller
Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 20 A, 6 kV, dark beige, 1131760000
Unit Price (€ / pc.)
5.712 € *
Available in 6 Days: 250 pcs. - if ordered today

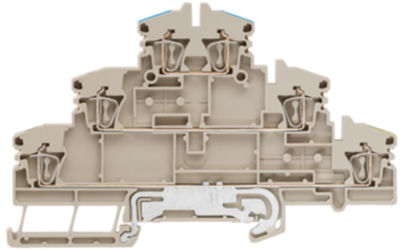

Double-tier terminal, 1131760000, Weidmüller
Double-tier terminal block, spring-cage connection, 2.5 mm², 500 V, 20 A, number of levels: 3, dark beige
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Connection | spring balancer connection | |
| AWG cross-section | AWG 26 to 12 | |
| Number of terminals | 6 | |
| Length | 69 mm | |
| Height | 110.5 mm | |
| Rated surge voltage | 6 kV | |
| Width | 5.1 mm | |
| Colour | dark beige | |
| Version | multi level terminal block | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
