1131740000 | Weidmüller
Protective conductor terminal, spring balancer connection, 0.5-2.5 mm², 20 A, dark beige, 1131740000
Unit Price (€ / pc.)
6.3546 € *
Available in 6 Days: 250 pcs. - if ordered today

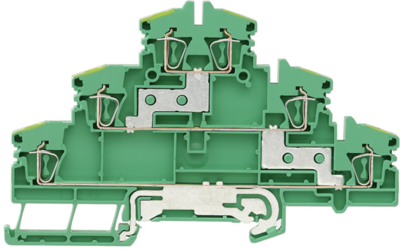

Protective conductor terminal block, 1131740000, Weidmüller
Protective conductor terminal block, tension clamp connection, 2.5 mm², number of connections: 6, number of levels: 3, dark beige
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | protective conductor terminal | |
| Number of terminals | 6 | |
| Cable cross-section | 0.5-2.5 mm² | |
| AWG cross-section | AWG 26 to 12 | |
| Rated current | 20 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 110.5 mm | |
| Width | 5.1 mm | |
| Height | 69 mm | |
| Connection | spring balancer connection | |
| Colour | dark beige |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
