1060370000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-10 mm², 41 A, 6 kV, dark beige, 1060370000

Order No.: 50P4349
EAN: 4032248812974
MPN:
1060370000
WTL 6/3/STB SW
Series: W-Reihe
1060370000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
7.378 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
7.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.378 €

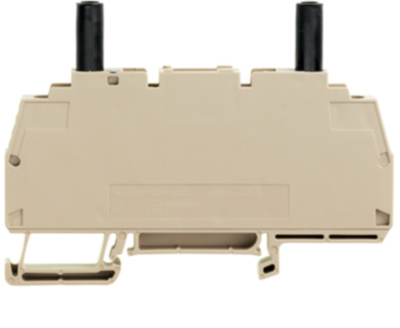

Test-disconnect terminal, 1060370000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 6 mm², 500 V, 41 A, sliding, transverse isolation: none, integrated test socket: yes, TS 35, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Filter Property Value
Connection screw connection
Width 7.9 mm
Colour dark beige
Rated surge voltage 6 kV
Number of terminals 2
AWG cross-section AWG 20 to 8
Length 64 mm
Degree of soiling 3
Rated Voltage 500 V
Version disconnect/test-disconnect terminal block
Height 87 mm
Rated current 41 A
Cable cross-section 0.5-10 mm²
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
