1058680000 | Weidmüller

Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 20 A, 6 kV, white, 1058680000

Order No.: 50P4162
EAN: 4032248806331
MPN:
1058680000
ZDK 2.5 WS
Series: Z-Reihe
1058680000 Weidmüller Series Terminals

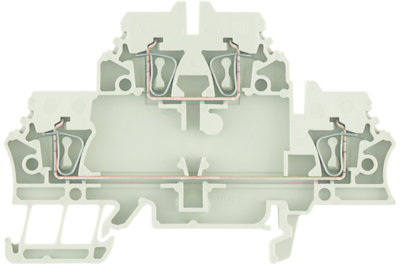

Image may differ
Unit Price (€ / pc.)
3.6533 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
3.65 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6533 €
10 pcs.
3.3558 €
50 pcs.
3.0702 €
100 pcs.
2.7608 €
*incl. VAT plus shipping costs
Subject to prior sale

Double-tier terminal, 1058680000, Weidmüller

Double-tier terminal block, tension clamp connection, 2.5 mm², 500 V, 20 A, number of levels: 2, white

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Colour white
AWG cross-section AWG 24 to 14
Rated current 20 A
Width 5.1 mm
Height 79.5 mm
Length 53 mm
Cable cross-section 0.5-2.5 mm²
Number of terminals 4
Version multi level terminal block
Connection spring balancer connection
Degree of soiling 3
Rated Voltage 500 V
Rated surge voltage 6 kV
Logistics
Country of origin CZ
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
