1049250000 | Weidmüller
Bolt terminal, bolt connection, 185 mm², 2 pole, 353 A, dark beige, 1049250000
Order No.: 50P3948
EAN: 4050118255133
MPN:
1049250000
WFF 185 NFF
Unit Price (€ / pc.)
82.7883 € *
Available in 6 Days: 10 pcs. - if ordered today
Total Price:
82.79 € *
Price list
Quantity
Price per unit*
1 pcs.
82.7883 €
5 pcs.
78.6590 €
10 pcs.
74.7201 €
*incl. VAT plus shipping costs
Subject to prior sale

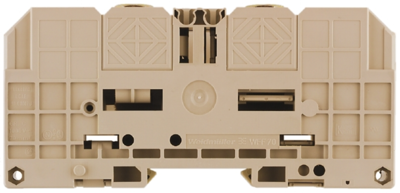

Bolt clamp, 1049250000, Weidmüller
Bolt clamp, bolt connection, 185 mm², 500 V, 353 A, number of connections: 2, M 12, TS 35, dark beige
Clamp with threaded bolt for the transmission of energy. The conductors are connected to the threaded bolt with crimped cable lugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Connection | bolt connection | |
| Number of terminals | 2 | |
| Length | 77.2 mm | |
| Height | 163 mm | |
| Width | 55 mm | |
| Pin number | 2 pole | |
| Colour | dark beige | |
| Version | Bolt terminal | |
| Cable cross-section | 185 mm² | |
| Rated current | 353 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
