1048240000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 24 A, 6 kV, yellow, 1048240000

Order No.: 50P3881
EAN: 4032248793624
MPN:
1048240000
WTR 2.5 GE
Series: W-Reihe
1048240000 Weidmüller Series Terminals

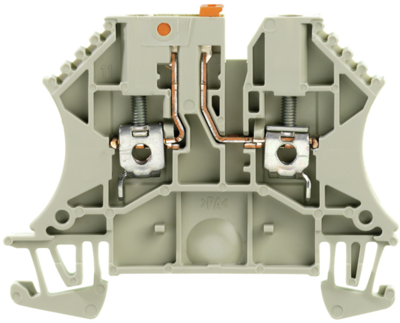

Image may differ
Unit Price (€ / pc.)
2.8798 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.8798 €

Test-disconnect terminal, 1048240000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 2.5 mm², 500 V, 24 A, swivel type, cross disconnection: none, integrated test socket: no, TS 35, yellow.

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Filter Property Value
Rated Voltage 500 V
Number of terminals 2
Height 60 mm
Colour yellow
Degree of soiling 3
Rated current 24 A
Cable cross-section 0.5-4.0 mm²
Version disconnect/test-disconnect terminal block
Connection screw connection
AWG cross-section AWG 30 to 12
Width 5.1 mm
Rated surge voltage 6 kV
Length 48 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
