1036400000 | Weidmüller

Multi level terminal block, screw connection, 0.5-4.0 mm², 24 A, 6 kV, dark beige, 1036400000

Order No.: 50P3441
EAN: 4008190297374
MPN:
1036400000
WDK 2.5DU-PE
Series: W-Reihe
1036400000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
5.2122 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
5.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.2122 €

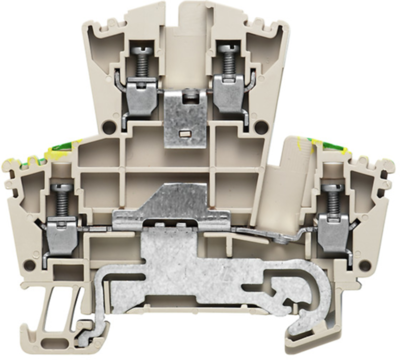

Double-tier terminal, 1036400000, Weidmüller

Double-tier terminal block, screw connection, 2.5 mm², 400 V, 24 A, number of levels: 2, dark beige

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Height 69.5 mm
Version multi level terminal block
Colour dark beige
Width 5.1 mm
Rated current 24 A
Degree of soiling 3
Rated Voltage 400 V
AWG cross-section AWG 30 to 12
Number of terminals 4
Connection screw connection
Rated surge voltage 6 kV
Cable cross-section 0.5-4.0 mm²
Length 62.5 mm
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
