1028700000 | Weidmüller

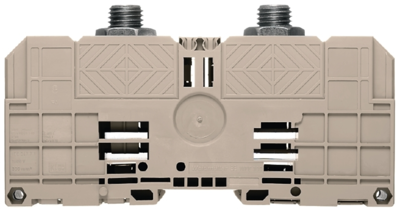

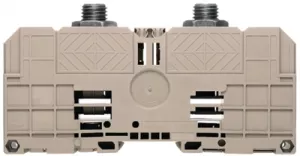

Bolt terminal, bolt connection, 300 mm², 2 pole, 520 A, 8 kV, dark beige, 1028700000
Order No.: 50P3145
EAN: 4008190165017
MPN:
1028700000
WFF 300
Unit Price (€ / pc.)
42.9233 € *
Available: 1 pcs.
Available in 6 Days: 20 pcs. - if ordered today
Total Price:
42.92 € *
Price list
Quantity
Price per unit*
1 pcs.
42.9233 €
10 pcs.
40.3529 €
25 pcs.
37.5207 €
50 pcs.
34.5100 €
*incl. VAT plus shipping costs
Subject to prior sale
Bolt clamp, 1028700000, WEIDMÜLLER
Clamp with threaded bolt for power transmission. The conductors are connected to the threaded bolt with crimped cable lugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Bolt terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 300 mm² | |
| AWG cross-section | AWG 6 | |
| Rated surge voltage | 8 kV | |
| Rated current | 520 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 85.5 mm | |
| Width | 55 mm | |
| Height | 163 mm | |
| Connection | bolt connection | |
| Colour | dark beige |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
