1027410000 | Weidmüller
Multi level terminal block, screw connection, 0.5-4.0 mm², 16.5 A, 4 kV, dark beige, 1027410000
Unit Price (€ / pc.)
8.1039 € *
Standard delivery time from the manufacturer is: 5 Weeks

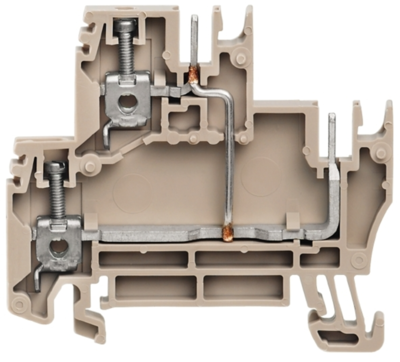

Double-tier terminal, 1027410000, Weidmüller
Double-tier terminal block, screw connection, 2.5 mm², 250 V, 16.5 A, number of levels: 2, dark beige
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 12 | |
| Length | 52.5 mm | |
| Rated current | 16.5 A | |
| Number of terminals | 4 | |
| Height | 58 mm | |
| Colour | dark beige | |
| Rated surge voltage | 4 kV | |
| Width | 5.08 mm | |
| Degree of soiling | 3 | |
| Connection | screw connection | |
| Version | multi level terminal block | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
