1024650000 | Weidmüller

Through terminal block, screw connection, 16-95 mm², 2 pole, 232 A, 8 kV, light green, 1024650000

Order No.: 50P2978
EAN: 4008190169619
MPN:
1024650000
WDU 70/95 HG
Series: W-Reihe
1024650000 Weidmüller Series Terminals

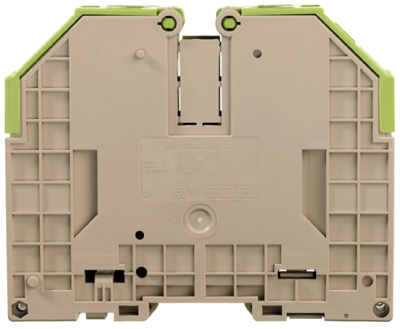

Image may differ
Unit Price (€ / pc.)
26.2157 € *
Available: 9 pcs.
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
26.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.2157 €

Feed-through terminal, 1024650000, Weidmüller

Feed-through terminal block, screw connection, 95 mm², 1000 V, 232 A, number of connections: 2, TS 35, light green

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Version through terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 16-95 mm²
AWG cross-section AWG 6 to 2/0
Rated surge voltage 8 kV
Rated current 232 A
Rated Voltage 1000 V
Degree of soiling 3
Length 107 mm
Width 27 mm
Height 132 mm
Connection screw connection
Colour light green
Logistics
Customs tariff number 85369010
Country of origin CZ
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
