1024550000 | Weidmüller

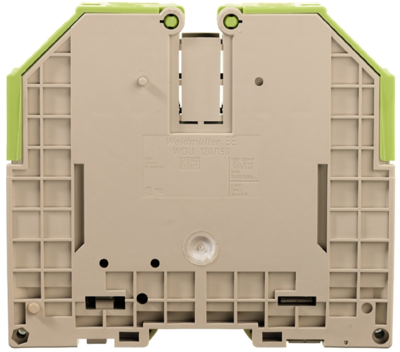

Through terminal block, screw connection, 35-150 mm², 2 pole, 269 A, 8 kV, light green, 1024550000

Order No.: 50P2975
EAN: 4008190150815
MPN:
1024550000
WDU 120/150 HG
Series: W-Reihe
1024550000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
37.4612 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
37.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
37.4612 €

Feed-through terminal, 1024550000, Weidmüller

Feed-through terminal block, screw connection, 120 mm², 1000 V, 269 A, number of connections: 2, TS 35, light green

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Version through terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 35-150 mm²
AWG cross-section AWG 2
Rated surge voltage 8 kV
Rated current 269 A
Rated Voltage 1000 V
Degree of soiling 3
Length 117 mm
Width 32 mm
Height 132 mm
Connection screw connection
Colour light green
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
