1023830000 | Weidmüller
Disconnect/test-disconnect terminal block, spring balancer connection, 0.5-6.0 mm², 32 A, 8 kV, dark beige, 1023830000
Unit Price (€ / pc.)
4.4506 € *
Standard delivery time from the manufacturer is: 1 Week

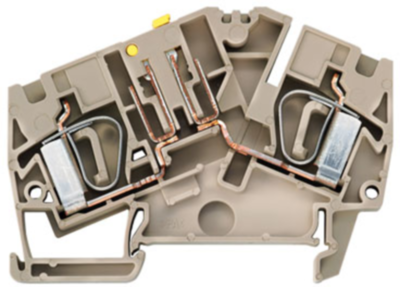

Test-disconnect terminal, 1023830000, Weidmüller
Disconnect and test-disconnect terminal block, spring-cage connection, 6 mm², 690 V, 32 A, swiveling, cross-disconnect: none, TS 35, dark beige
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated surge voltage | 8 kV | |
| Height | 70 mm | |
| Rated current | 32 A | |
| Length | 50 mm | |
| Cable cross-section | 0.5-6.0 mm² | |
| AWG cross-section | AWG 22 to 8 | |
| Number of terminals | 2 | |
| Connection | spring balancer connection | |
| Rated Voltage | 690 V | |
| Colour | dark beige | |
| Version | disconnect/test-disconnect terminal block | |
| Width | 8.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
