1023200000 | Weidmüller
Component terminal block, screw connection, 0.5-4.0 mm², 10 A, 6 kV, dark beige, 1023200000
Unit Price (€ / pc.)
2.6418 € *
Available in 6 Days: 500 pcs. - if ordered today

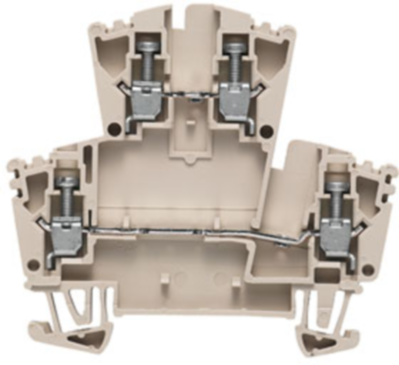

Component terminal block, 1023200000, Weidmüller
Component terminal block, screw connection, 2.5 mm², 400 V, 10 A, TS 35, dark beige
Terminal block for the installation of electronic components.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 | |
| Length | 62.5 mm | |
| Rated current | 10 A | |
| Number of terminals | 2 | |
| Height | 69.5 mm | |
| Colour | dark beige | |
| Rated surge voltage | 6 kV | |
| Width | 5.1 mm | |
| Degree of soiling | 3 | |
| Connection | screw connection | |
| Version | component terminal block | |
| Rated Voltage | 400 V | |
| Cable cross-section | 0.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
