1021700000 | Weidmüller
Multi level terminal block, plug-in connection, 1.0 mm², 12 A, 6 kV, dark beige, 1021700000
Unit Price (€ / pc.)
4.1412 € *
Standard delivery time from the manufacturer is: 5 Weeks

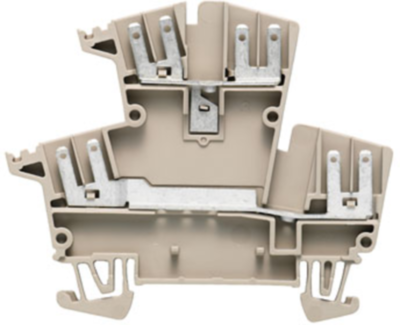

Double-tier terminal, 1021700000, Weidmüller
Double-tier terminal block, blade terminal, 1 mm², 400 V, 12 A, number of levels: 2, dark beige
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 75.5 mm | |
| Version | multi level terminal block | |
| Colour | dark beige | |
| Width | 5.1 mm | |
| Rated current | 12 A | |
| Degree of soiling | 3 | |
| Rated Voltage | 400 V | |
| AWG cross-section | AWG 26 to 12 | |
| Number of terminals | 8 | |
| Connection | plug-in connection | |
| Rated surge voltage | 6 kV | |
| Cable cross-section | 1.0 mm² | |
| Length | 62.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
