1019700000 | Weidmüller
Protective conductor terminal, screw connection, 35-150 mm², 2 pole, 8 kV, yellow/green, 1019700000
Unit Price (€ / pc.)
58.0601 € *
Available in 6 Days: 50 pcs. - if ordered today

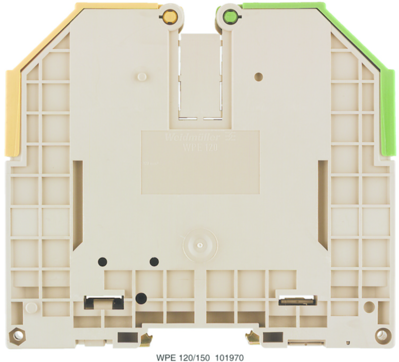

Protective conductor terminal block, 1019700000, Weidmüller
Protective conductor terminal block, screw connection, 120 mm², 1000 V, number of connections: 2, number of levels: 1, green / yellow.
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 1000 V | |
| Pin number | 2 pole | |
| Number of terminals | 2 | |
| Height | 117 mm | |
| Colour | yellow/green | |
| Degree of soiling | 3 | |
| Cable cross-section | 35-150 mm² | |
| Version | protective conductor terminal | |
| Connection | screw connection | |
| AWG cross-section | AWG 2 | |
| Width | 32 mm | |
| Rated surge voltage | 8 kV | |
| Length | 132 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
