1018600000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-10 mm², 41 A, 6 kV, dark beige, 1018600000

Order No.: 50P2763
EAN: 4008190259266
MPN:
1018600000
WTL 6/3/STB
Series: W-Reihe
1018600000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
7.378 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
7.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.378 €

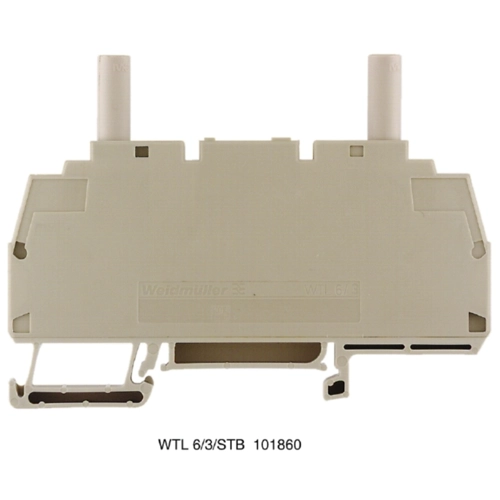

Test-disconnect terminal, 1018600000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 6 mm², 500 V, 41 A, sliding, cross disconnection: none, integrated test socket: yes, TS 35, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Filter Property Value
Height 87 mm
Width 7.9 mm
Rated current 41 A
Version disconnect/test-disconnect terminal block
Rated surge voltage 6 kV
Colour dark beige
Degree of soiling 3
Length 64 mm
AWG cross-section AWG 20 to 8
Connection screw connection
Rated Voltage 500 V
Number of terminals 2
Cable cross-section 0.5-10 mm²
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
