1017000000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-10 mm², 41 A, 6 kV, dark beige, 1017000000

Order No.: 50P2684
EAN: 4008190169039
MPN:
1017000000
WTL 6/1/STB/32
Series: W-Reihe
1017000000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
4.6053 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.6053 €

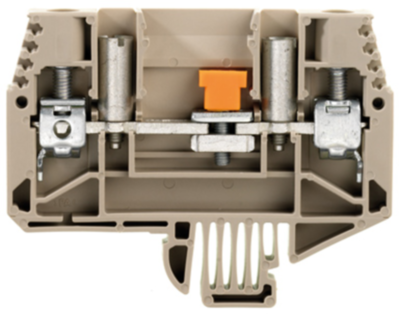

Test-disconnect terminal, 1017000000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 6 mm², 630 V, 41 A, sliding, cross disconnection: none, integrated test socket: yes, TS 32, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Filter Property Value
Connection screw connection
Width 7.9 mm
Colour dark beige
Rated surge voltage 6 kV
Number of terminals 2
AWG cross-section AWG 20 to 8
Length 47.5 mm
Degree of soiling 3
Rated Voltage 630 V
Version disconnect/test-disconnect terminal block
Height 65 mm
Rated current 41 A
Cable cross-section 0.5-10 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
