1010880000 | Weidmüller
Disconnect/test-disconnect terminal block, screw connection, 0.5-10 mm², 41 A, 6 kV, blue, 1010880000
Unit Price (€ / pc.)
3.9270 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9270 €
10 pcs.
3.6057 €
50 pcs.
3.2844 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
Subject to prior sale

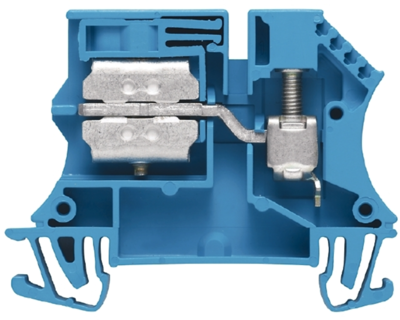

Test-disconnect terminal, 1010880000, Weidmüller
Disconnect and test-disconnect terminal block, busbar connection, 6 mm², 400 V, 41 A, sliding, cross disconnection: without, TS 35, blue
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 8 | |
| Length | 46.5 mm | |
| Rated current | 41 A | |
| Number of terminals | 1 | |
| Height | 60 mm | |
| Colour | blue | |
| Rated surge voltage | 6 kV | |
| Width | 7.9 mm | |
| Degree of soiling | 3 | |
| Connection | screw connection | |
| Version | disconnect/test-disconnect terminal block | |
| Rated Voltage | 400 V | |
| Cable cross-section | 0.5-10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
