1010400000 | Weidmüller

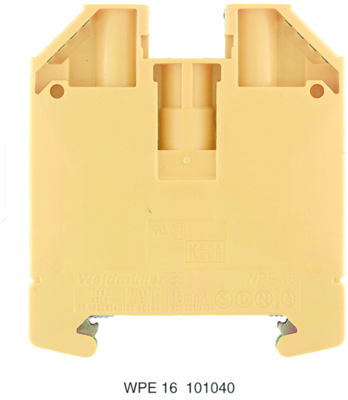

Protective conductor terminal, screw connection, 1.5-25 mm², 2 pole, 8 kV, yellow/green, 1010400000
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
16.1007 € *
Available in 12 Days: 183 pcs. - if ordered today
Terminal block, 1010400000, WEIDMÜLLER
Clamp with protective earth contact for connecting or joining wires, cores and cables with permanently secure contact. Hardened steel for the mechanical forces and high quality copper with tin coating ensure best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | protective conductor terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 1.5-25 mm² | |
| AWG cross-section | AWG 14 to 6 | |
| Rated surge voltage | 8 kV | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 62.5 mm | |
| Width | 11.9 mm | |
| Height | 56 mm | |
| Connection | screw connection | |
| Colour | yellow/green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
