0699600000 | Weidmüller

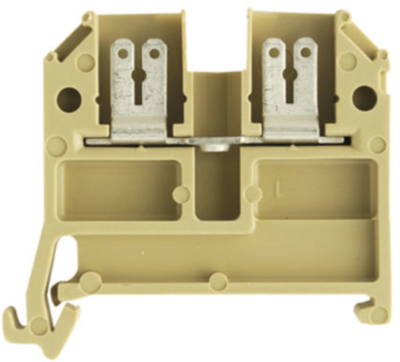

Through terminal block, plug-in connection, 0.5-2.5 mm², 4 pole, 20 A, 6 kV, dark beige, 0699600000
Unit Price (€ / pc.)
4.3078 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.31 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3078 €
10 pcs.
3.9508 €
50 pcs.
3.6057 €
100 pcs.
3.2368 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal, 0699600000, Weidmüller
Feed-through modular terminal block, blade terminal, 2.5 mm², 500 V, 20 A, number of connections: 4, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Connection | plug-in connection | |
| Number of terminals | 4 | |
| Length | 46 mm | |
| Height | 58 mm | |
| Rated surge voltage | 6 kV | |
| Width | 6.5 mm | |
| Pin number | 4 pole | |
| Colour | dark beige | |
| Version | through terminal block | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
