0670760000 | Weidmüller
Multi level terminal block, screw connection, 0.5-4.0 mm², 10 A, beige/yellow, 0670760000
Unit Price (€ / pc.)
4.3197 € *
Available in 6 Days: 250 pcs. - if ordered today

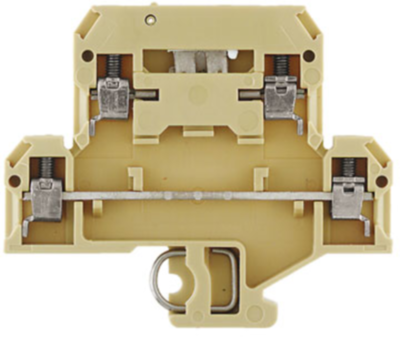

Double-tier terminal, 0670760000, Weidmüller
Double-tier terminal block, screw connection, 4 mm², 400 V, 10 A, number of levels: 2, beige/yellow.
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 12 | |
| Colour | beige/yellow | |
| Rated current | 10 A | |
| Connection | screw connection | |
| Length | 56.5 mm | |
| Number of terminals | 2 | |
| Rated Voltage | 400 V | |
| Cable cross-section | 0.5-4.0 mm² | |
| Width | 6 mm | |
| Height | 65 mm | |
| Version | multi level terminal block |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
