0582460000 | Weidmüller

Through terminal block, screw connection, 2.5-35 mm², 2 pole, 125 A, 8 kV, beige/yellow, 0582460000

Order No.: 50P1667
EAN: 4008190090692
MPN:
0582460000
SAK 35/35/IK
Series: SAK-Reihe
0582460000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
23.2645 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
23.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
23.2645 €

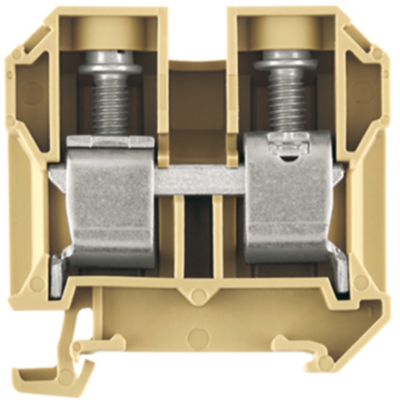

Feed-through terminal, 0582460000, Weidmüller

Feed-through modular terminal block, screw connection, 35 mm², 800 V, 125 A, number of connections: 2, TS 35, beige/yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Version through terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 2.5-35 mm²
AWG cross-section AWG 12 to 2
Rated surge voltage 8 kV
Rated current 125 A
Rated Voltage 800 V
Degree of soiling 3
Length 60 mm
Width 18 mm
Height 58 mm
Connection screw connection
Colour beige/yellow
Logistics
Country of origin RO
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
