0497560000 | Weidmüller
Through terminal block, screw connection, 0.5-4.0 mm², 2 pole, 32 A, 6 kV, beige/yellow, 0497560000
Unit Price (€ / pc.)
6.5807 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: 1 Week **

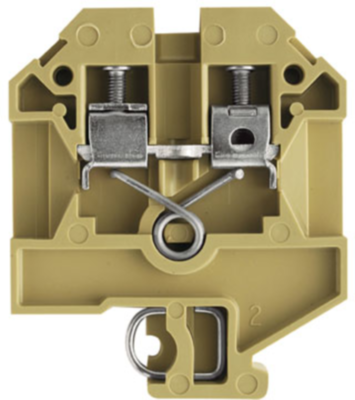

Feed-through terminal, 0497560000, Weidmüller
Feed-through modular terminal block, screw connection, 4 mm², 630 V, 32 A, number of connections: 2, TS 32, beige/yellow.
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Version | Durchgangsklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,5-4,0 mm² | |
| AWG cross-section | AWG 22 bis 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 32 A | |
| Rated Voltage | 630 V | |
| Degree of soiling | 3 | |
| Length | 60 mm | |
| Width | 8 mm | |
| Height | 50 mm | |
| Connection | Schraubanschluss | |
| Colour | beige/gelb |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
