0460360000 | Weidmüller

Through terminal block, plug-in connection, 0.5-4.0 mm², 2 pole, 20 A, 6 kV, beige/yellow, 0460360000

Order No.: 50P1193
EAN: 4008190001094
MPN:
0460360000
AST 3/35 6.3/2.8
Series: SAK-Reihe
0460360000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
2.4752 € *
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
2.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.4752 €

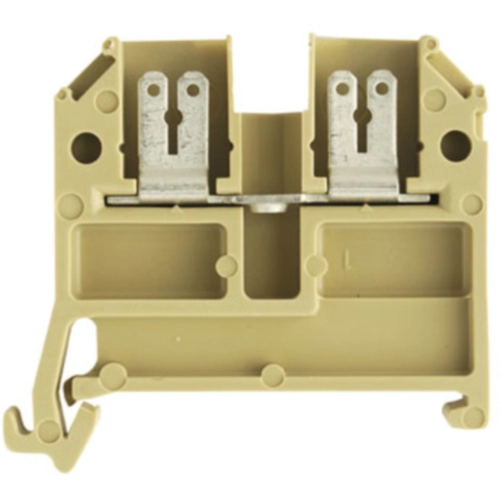

Feed-through terminal, 0460360000, Weidmüller

Feed-through modular terminal block, blade terminal, 2.5 mm², 500 V, 20 A, number of connections: 2, TS 35, beige/yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Length 40.1 mm
Pin number 2 pole
Colour beige/yellow
Height 40 mm
Rated current 20 A
Connection plug-in connection
Degree of soiling 3
Cable cross-section 0.5-4.0 mm²
Rated surge voltage 6 kV
Version through terminal block
Number of terminals 2
Rated Voltage 500 V
Width 6.1 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin RO
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
