0448460000 | Weidmüller
Bolt terminal, screw connection, 16 mm², 76 A, 8 kV, dark beige, 0448460000
Order No.: 50P1177
EAN: 4008190519834
MPN:
0448460000
STL 5/EN
Unit Price (€ / pc.)
7.0686 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
7.07 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0686 €
10 pcs.
6.5688 €
50 pcs.
5.9857 €
*incl. VAT plus shipping costs
Subject to prior sale

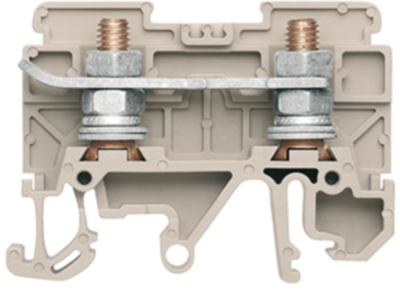

Bolt clamp, 0448460000, Weidmüller
Bolt clamp, screw connection, 16 mm², 800 V, 76 A, M 5, TS 32, TS 35, dark beige
Clamp with threaded bolt for the transmission of energy. The conductors are connected to the threaded bolt with crimped cable lugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Bolt terminal | |
| Height | 54.5 mm | |
| Length | 47.5 mm | |
| Colour | dark beige | |
| Degree of soiling | 3 | |
| Number of terminals | 1 | |
| Width | 16.4 mm | |
| Rated surge voltage | 8 kV | |
| Cable cross-section | 16 mm² | |
| Connection | screw connection | |
| Rated Voltage | 800 V | |
| Rated current | 76 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
