0412160000 | Weidmüller

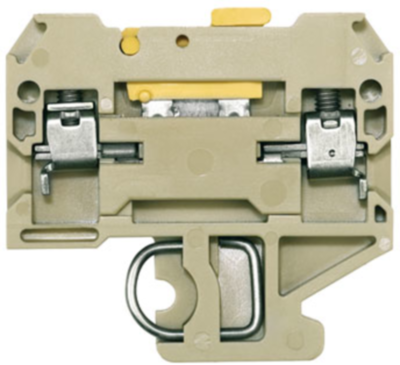

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 10 A, 6 kV, beige, 0412160000

Order No.: 50P1123
EAN: 4008190016418
MPN:
0412160000
SAKR
Series: SAK-Reihe
0412160000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
5.4621 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.4621 €

Test-disconnect terminal, 0412160000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 4 mm², 400 V, 10 A, swiveling, cross-disconnect: without, integrated test socket: No, TS 32, beige/yellow

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Filter Property Value
Connection screw connection
Width 6.5 mm
Colour beige
Rated surge voltage 6 kV
Number of terminals 2
AWG cross-section AWG 26 to 12
Length 40.5 mm
Degree of soiling 3
Rated Voltage 400 V
Version disconnect/test-disconnect terminal block
Height 42 mm
Rated current 10 A
Cable cross-section 0.5-4.0 mm²
Logistics
Property Value
Country of origin RO
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
