0380680000 | Weidmüller

Through terminal block, screw connection, 4.0-16 mm², 2 pole, 76 A, 8 kV, blue, 0380680000

Order No.: 50P1069
EAN: 4008190079512
MPN:
0380680000
SAK 16/35 PA/BL
Series: SAK-Reihe
0380680000 Weidmüller Series Terminals

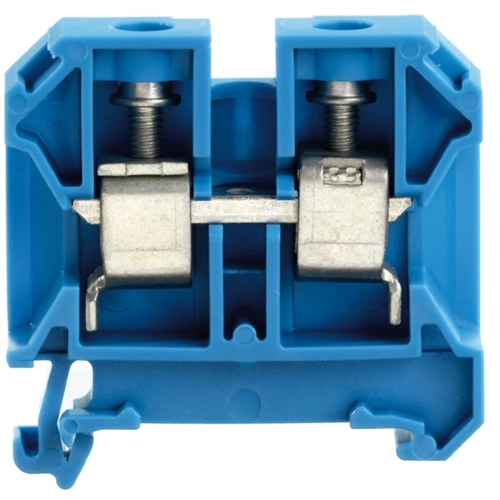

Image may differ
Unit Price (€ / pc.)
11.5668 € *
Available: 20 pcs.
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
11.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.5668 €

Feed-through terminal, 0380680000, Weidmüller

Feed-through modular terminal block, screw connection, 16 mm², 1000 V, 76 A, number of connections: 2, TS 35, blue

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Version through terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 4.0-16 mm²
AWG cross-section AWG 12 to 6
Rated surge voltage 8 kV
Rated current 76 A
Rated Voltage 1000 V
Degree of soiling 3
Length 57.5 mm
Width 12 mm
Height 50 mm
Connection screw connection
Colour blue
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
