0374660000 | Weidmüller
Protective conductor terminal, screw connection, 4.0-16 mm², 2 pole, 80 A, 8 kV, yellow/green, 0374660000
Unit Price (€ / pc.)
10.6981 € *
Standard delivery time from the manufacturer is: 2 Weeks

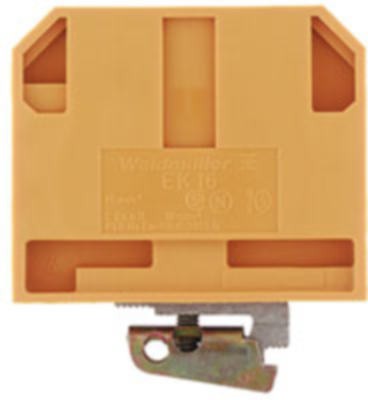

Protective conductor terminal block, 0374660000, Weidmüller
Protective conductor terminal block, screw connection, 16 mm², 800 V, number of connections: 2, number of levels: 1, yellow, green
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | protective conductor terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 4.0-16 mm² | |
| AWG cross-section | AWG 12 to 6 | |
| Rated surge voltage | 8 kV | |
| Rated current | 80 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 57.5 mm | |
| Width | 12 mm | |
| Height | 50 mm | |
| Connection | screw connection | |
| Colour | yellow/green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
