0300720000 | Weidmüller

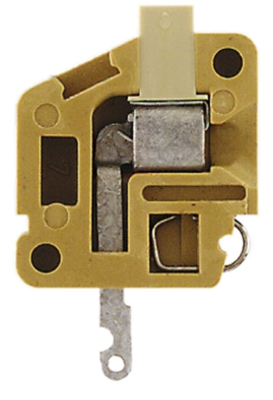

Through terminal block, solder connection, 0.5-4.0 mm², 1 pole, 32 A, 6 kV, yellow, 0300720000
Order No.: 50P0823
EAN: 4008190072018
MPN:
0300720000
AKA 2.5
Feed-through terminal, 0300720000, Weidmüller
Feed-through modular terminal block, solder connection, 2.5 mm², 400 V, 20 A, number of connections: 1, medium yellow.
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | through terminal block | |
| Number of terminals | 1 | |
| Pin number | 1 pole | |
| Cable cross-section | 0.5-4.0 mm² | |
| AWG cross-section | AWG 22 to 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 32 A | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 | |
| Length | 23.5 mm | |
| Width | 6 mm | |
| Height | 20 mm | |
| Connection | solder connection | |
| Colour | yellow |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
