0286720000 | Weidmüller

Through terminal block, screw connection, 10-70 mm², 1 pole, 150 A, 8 kV, yellow, 0286720000

Order No.: 50P0774
EAN: 4008190081010
MPN:
0286720000
SAKG 32 III
Series: SAK-Reihe
0286720000 Weidmüller Series Terminals

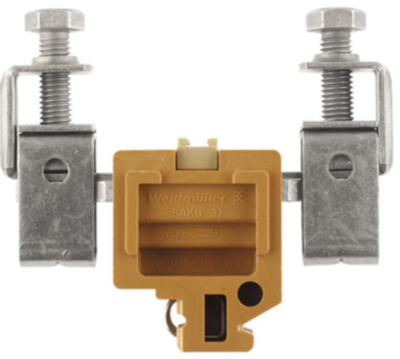

Image may differ
Unit Price (€ / pc.)
49.7896 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
49.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
49.7896 €

Feed-through terminal, 0286720000, Weidmüller

Feed-through modular terminal block, screw connection, 50 mm², 1000 V, 150 A, number of connections: 1, TS 32, medium yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Filter Property Value
Version through terminal block
Number of terminals 1
Pin number 1 pole
Cable cross-section 10-70 mm²
AWG cross-section AWG 3 to 2/0
Rated surge voltage 8 kV
Rated current 150 A
Rated Voltage 1000 V
Degree of soiling 3
Length 84.5 mm
Width 32 mm
Height 94 mm
Connection screw connection
Colour yellow
Logistics
Property Value
Country of origin HU
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
