0211200000 | Weidmüller
Protective conductor terminal, Screw connection, 0.5-4.0 mm²
Unit Price (€ / pc.)
2.8560 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6180 €
50 pcs.
2.3919 €
100 pcs.
2.1539 €
*incl. VAT plus shipping costs
Subject to prior sale

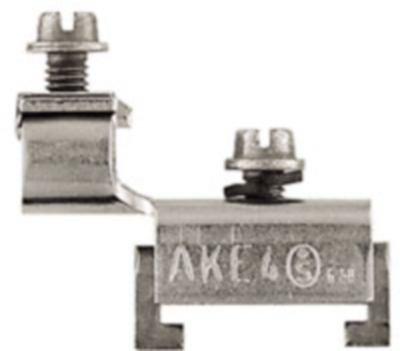

Protective conductor terminal block, 0211200000, Weidmüller
Protective conductor terminal block, screw connection, 4 mm², number of connections: 1, number of levels: 1
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Connection | screw connection | |
| Number of terminals | 1 | |
| Length | 30 mm | |
| Height | 32 mm | |
| Width | 7 mm | |
| Pin number | 1 pole | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
